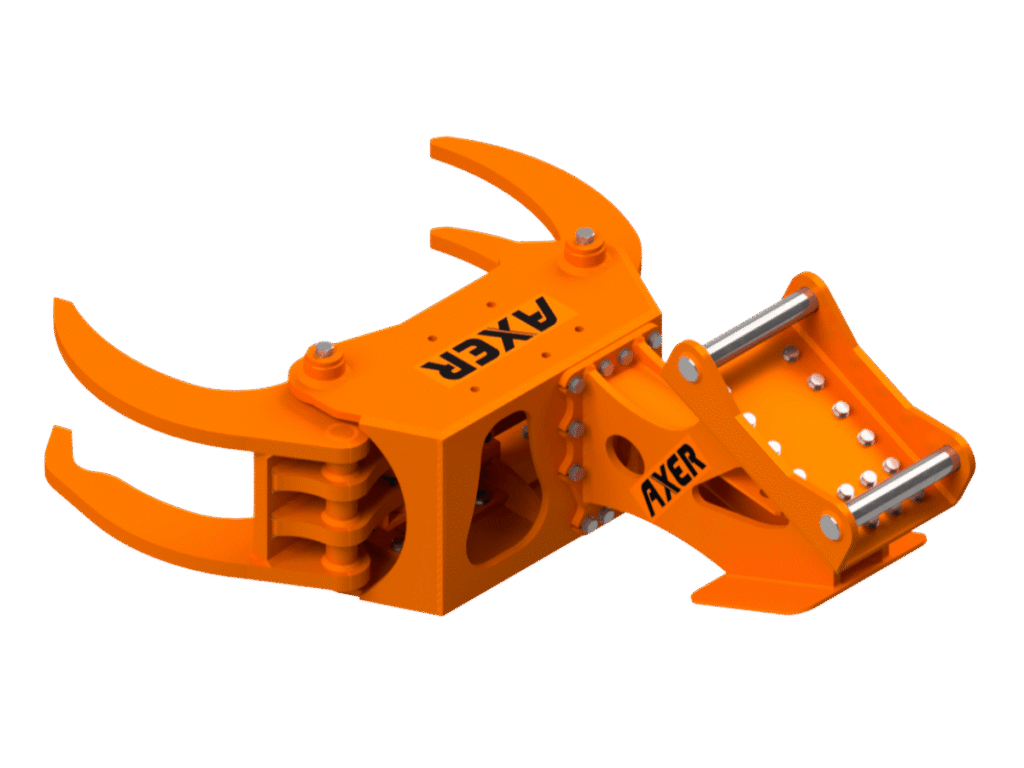

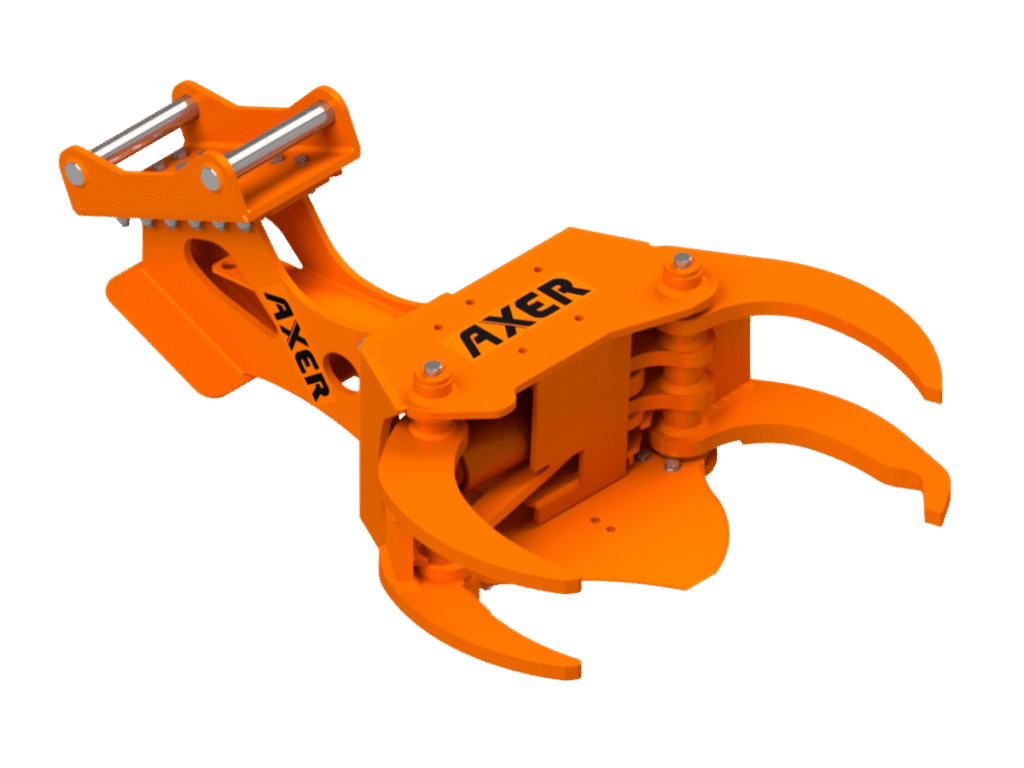

Axer 800 HD K Axer 800 HD K
Tree shears

Axer 800 HD K

THE MOST RUGGED TREE SHEAR FROM AXER

  • > 12 t
  • 400 mm

The Axer 800 HD tree shear is the heaviest option in the Axer range, suitable for excavators over 12 tonnes.

Mass
680 kg
Max. oil pressure
300 bar
Recommended minimum oil flow
100 L/min
Max. cutting diameter for hard wood
400 mm

Construction & details

This tree shear is designed for Europe’s larger trees. A strong wear-resistant steel frame and robust geometry enable installation on machines up to 30 tonnes.

The high cutting force enables trouble-free cutting of even the largest trees. A 20 mm thick hardened cutting blade, a strong grip on wood and a correctly sized cylinder from our own production ensure trouble-free operation in heavy forests.

Available as a K model with bolted blade and as an L model with a patented retractable cutting blade, allowing use for loading, brush clearing and as a regular grapple. Both models feature a hardened, removable and replaceable cutting blade.

Benefits of Axer 800 HD K

  • With decades of experience

  • Designed for customers' needs

  • Available widely across Europe

Technical data

Compatible accessories

Accessories available for this model that expand the grip's capabilities and make work more efficient.

  • Collector

    Collector

    Gathers thin stems and energy wood in the same load — increases load volume and reduces empty lifts.

  • 360° Rotator

    360° Rotator

    Free rotation enables precise grip positioning — faster work and fewer boom movements.

  • Tilt

    Tilt

    Adjustable tilt sets the grip head at the right angle — easier stacking and better operator ergonomics.

  • Fixed pruning blades

    Fixed pruning blades

    Fixed blades prune branches cleanly during loading — one less work step.

  • Moving pruning blades

    Moving pruning blades

    Moving blades follow the trunk's shape and prune even thicker branches effectively.
